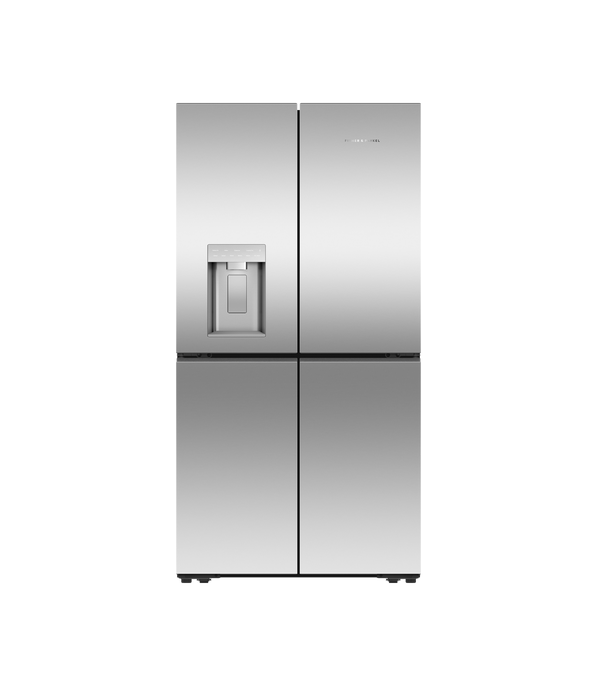

606L Series 7 Quad Door Refrigerator Freezer
Premium Quad Door refrigeration with through-door ice, water and flexible temperature control
The Fisher & Paykel RF620QNTVX1 combines generous 606L capacity with through-door chilled water, cubed and crushed ice, ActiveSmart™ Foodcare and a flexible Variable Temperature Zone. With SmartHQ™ connectivity, humidity-controlled produce storage and a 4.5-Star Energy Rating, it delivers premium food care with everyday convenience.
At a glance
Key product facts
Fisher & Paykel
Brand
RF620QNTVX1
Model
Series 7
Range
606L
Total capacity
Quad Door
Configuration
Through Door
Ice & water
Variable Temperature Zone
Flexible storage
4.5-Star
Energy rating

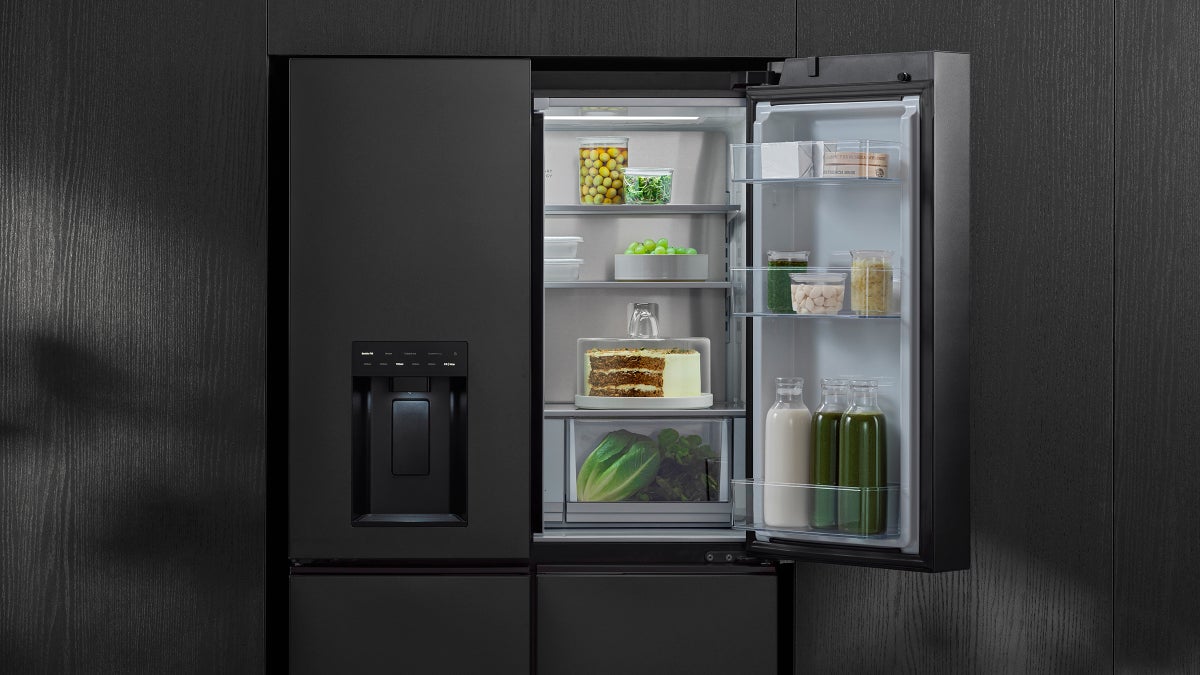

Product overview
Flexible food care with ice and water always within reach
The Fisher & Paykel RF620QNTVX1 606L Series 7 Quad Door Refrigerator Freezer is designed for households wanting generous capacity, flexible temperature control and premium everyday convenience.
The external dispenser provides chilled filtered water through the door, with both a traditional paddle and hands-free measured filling. Preset bottle-fill options from 500mL to 900mL help make dispensing more consistent, while the built-in support ledge helps accommodate larger bottles.

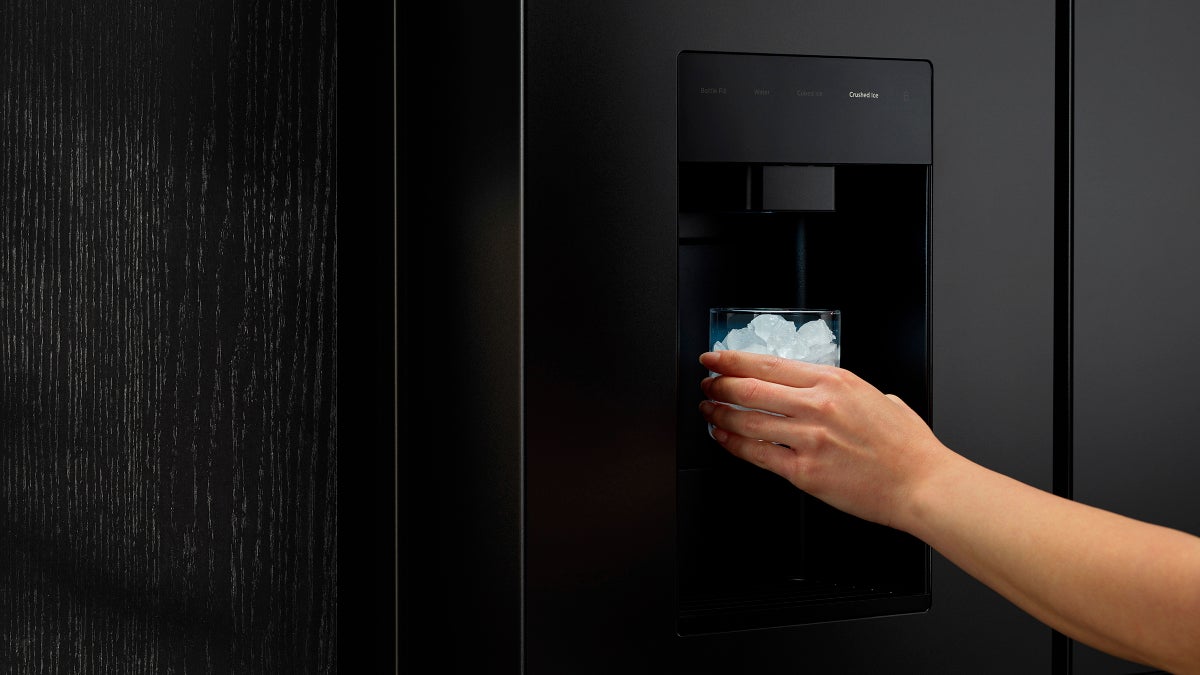

For entertaining, both cubed and crushed ice are available through the door, with ice production of up to 1.2kg per day.
The Variable Temperature Zone can be switched between Fridge, Chill, Soft Freeze and Gentle Freeze modes, giving you greater flexibility to create the right storage environment for different ingredients.
ActiveSmart™ Foodcare, adaptive defrost, triple evaporator technology and an inverter-controlled compressor work together to help maintain stable food-storage conditions.
Humidity Control Bins are designed to maintain optimal moisture levels for fresh produce, while Wi-Fi connectivity and the SmartHQ™ app provide alerts, notifications, guides and helpful appliance information.
Features
Features and product information
These details relate to model RF620QNTVX1.
606L Family Capacity
A generous 606L total capacity provides extensive room for fresh food, frozen groceries, drinks and entertaining essentials.
Through-Door Water Dispenser
Enjoy convenient access to chilled filtered water without opening the refrigerator door.
Hands-Free Measured Fill
Use the measured-fill function for convenient dispensing, with preset bottle-fill options of 500mL, 600mL, 700mL, 800mL and 900mL.
Bottle Support Ledge
A built-in ledge helps support larger bottles and vessels while filling.
Cubed & Crushed Ice
Choose between cubed ice for slower chilling or crushed ice for faster cooling and cocktails, both available directly through the door.
Up to 1.2kg Ice Per Day
The automatic ice system can produce up to 1.2kg of ice per day for everyday use and entertaining.

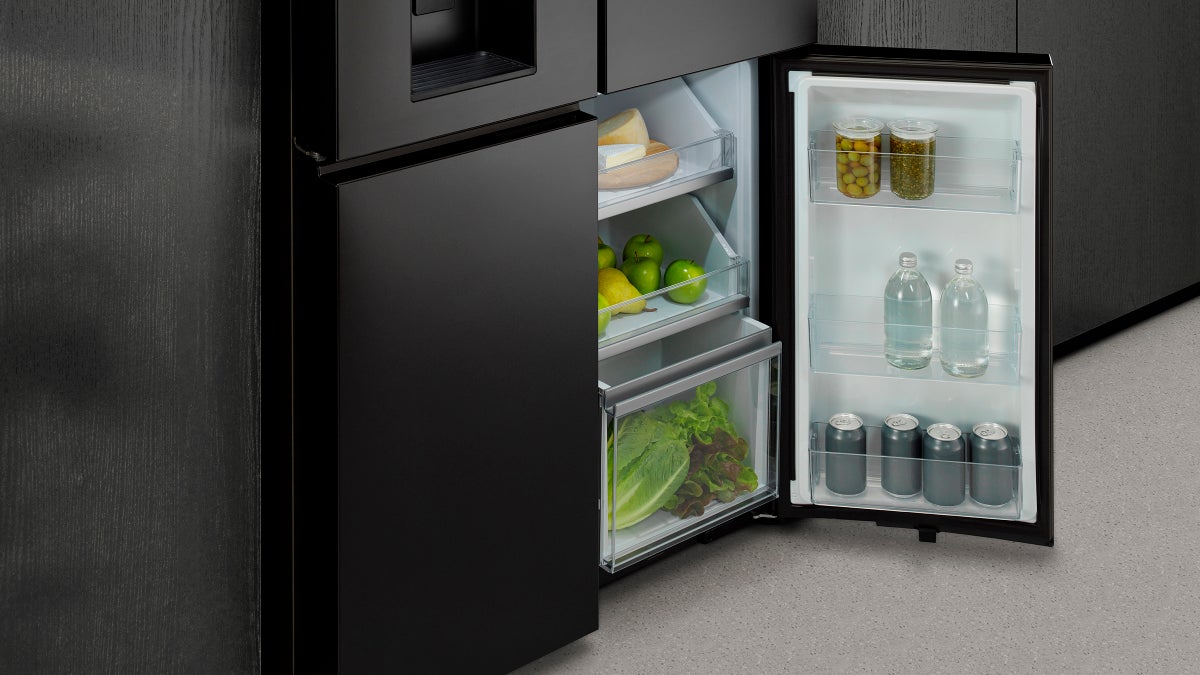

Variable Temperature Zone
Switch the dedicated compartment between Fridge, Chill, Soft Freeze and Gentle Freeze modes to suit changing storage needs.
Soft Freeze
Store selected foods at a softer frozen temperature, helping keep items such as meat easier to slice without a full defrost.

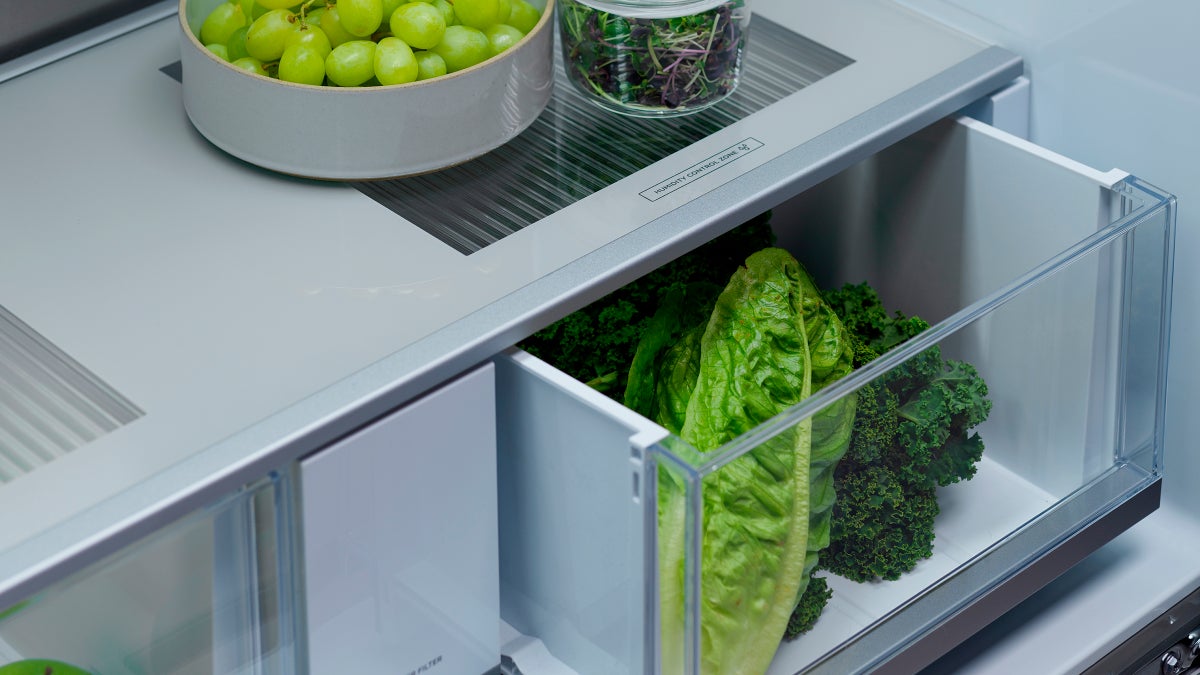

Humidity Control Bins
Dedicated produce bins with grooved lids are designed to maintain optimal humidity levels for fruit and vegetables.
ActiveSmart™ Foodcare
ActiveSmart™ Foodcare helps maintain stable temperature and airflow conditions to support better food preservation.
Triple Evaporator
Triple evaporator technology supports independent cooling performance across the refrigerator, freezer and variable-temperature storage areas.
Adaptive Defrost
Defrost operation is adjusted according to appliance use to help support efficient everyday performance.
Inverter Controlled Compressor
The inverter-controlled compressor adjusts cooling output to help maintain consistent temperature while supporting efficient operation.
Frost Free
Frost-free operation reduces the need for manual freezer defrosting.
SmartHQ™ Connectivity
Connect to Wi-Fi and the SmartHQ™ app to receive supported notifications, alerts, onboarding information and product guides.

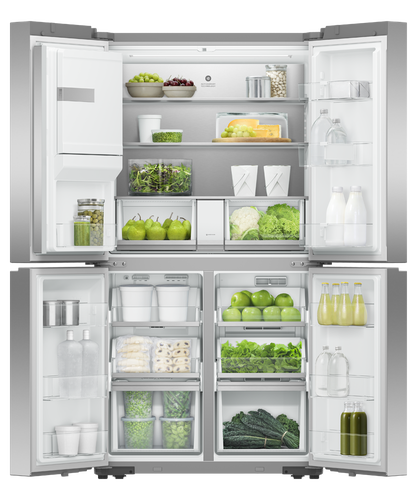

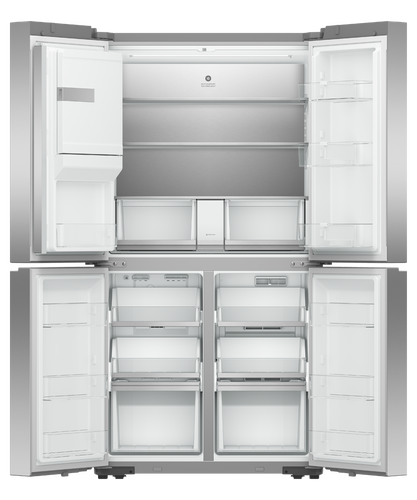

Adjustable Cantilevered Glass Shelves
Flexible shelving helps accommodate groceries and containers of different sizes.
LED Lighting
LED ceiling and freezer-bin lighting helps improve visibility throughout the appliance.
Bottle Chill
A dedicated Bottle Chill function helps cool drinks more quickly when needed.
Max Cold
Provides enhanced cooling performance when additional cold capacity is required.
Door & Drawer Alarms
Alerts help notify you if a door or drawer is accidentally left open.

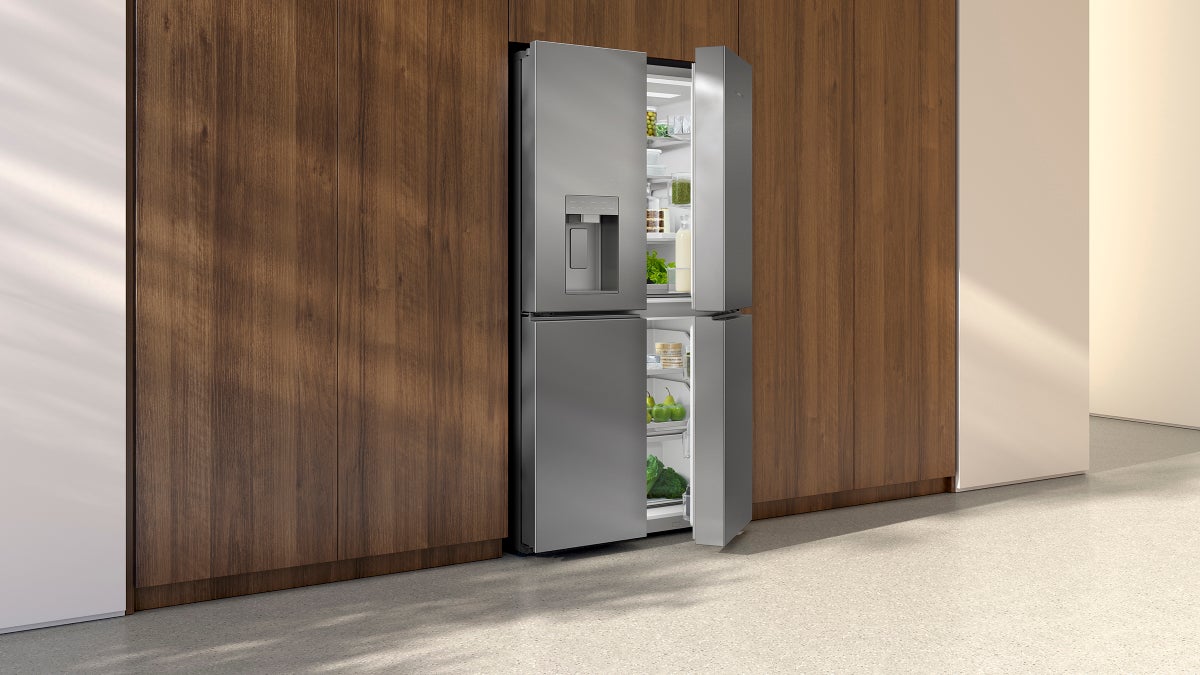

Considered Design
Recessed handles, balanced proportions and Silver Stainless Steel styling create a clean, cohesive appearance suited to contemporary kitchens.
Engineered for Everyday Durability
Fisher & Paykel states the refrigerator is life-tested beyond standard safety requirements, including repeated door-shelf impact testing for long-term durability.
Capacity
Storage capacity
606L
Total volume
Total volume
335.4L
Refrigerator
Refrigerator
137.5L
Freezer
Freezer
133.1L
Variable temperature compartment
Variable temperature compartment
Ice & Water
Through-door convenience
Through Door
Water access
Water access
Through Door
Ice access
Ice access
Cubed / Crushed
Ice types
Ice types
Up to 1.2kg/day
Ice production
Ice production
500–900mL
Preset bottle fill
Preset bottle fill
1L
Water tank capacity
Water tank capacity
Dimensions
Product dimensions
1790mm
Height
Height
905mm
Width
Width
747mm
Depth
Depth
Efficiency
Energy performance
4.5 Stars
Energy rating
Energy rating
408 kWh/year
Energy usage
Energy usage
Connected
SmartHQ™ features
Wi-Fi
Smart appliance connectivity
Smart appliance connectivity
Alerts & Notifications
SmartHQ™ support
SmartHQ™ support
Education & Onboarding
App guidance
App guidance
30 June 2031
Cybersecurity updates scheduled until
Cybersecurity updates scheduled until
Accessories
Replacement water filter
FPWF1 – 847200
Matching replacement water filter
Matching replacement water filter
A good choice if you want
- A premium 606L Series 7 Quad Door refrigerator
- Through-door chilled filtered water
- Cubed and crushed ice
- Hands-free measured filling
- A flexible Variable Temperature Zone
- Fridge, Chill, Soft Freeze and Gentle Freeze modes
- Humidity-controlled produce storage
- ActiveSmart™ Foodcare
- SmartHQ™ Wi-Fi connectivity
- 4.5-Star energy efficiency
- Premium Fisher & Paykel design
- Strong Smart Electrical clearance value
Check before ordering
- Overall dimensions are 1790 × 905 × 747mm
- Confirm cabinetry, ventilation and door-opening clearance
- Check water and installation requirements before purchase
- Replacement water filter model is FPWF1 – 847200
- SmartHQ™ features require compatible Wi-Fi and app connectivity
- Measure doorway, hallway and delivery access carefully
- Confirm current stock condition and inclusions before purchase
Questions
Frequently asked questions
What is the capacity of the Fisher & Paykel RF620QNTVX1?
The RF620QNTVX1 has a total capacity of 606L, including 335.4L of refrigerator space, 137.5L of freezer space and a 133.1L Variable Temperature compartment.
Does the RF620QNTVX1 dispense ice and water through the door?
Yes. It provides chilled water plus both cubed and crushed ice through the door.
How much ice can it produce?
The ice maker can produce up to approximately 1.2kg of ice per day.
What is the Variable Temperature Zone?
The dedicated compartment can be switched between Fridge, Chill, Soft Freeze and Gentle Freeze modes to suit different types of food and storage requirements.
Does it connect to Wi-Fi?
Yes. The RF620QNTVX1 can connect with the SmartHQ™ app for supported alerts, notifications and product guidance.
What is the energy rating?
The RF620QNTVX1 has a 4.5-Star Energy Rating with rated energy usage of approximately 408kWh per year.
What are the dimensions?
The refrigerator measures approximately 1790mm high × 905mm wide × 747mm deep.
Premium Quad Door refrigeration for less
Upgrade to 606L capacity, through-door cubed and crushed ice, measured water filling and flexible Variable Temperature storage at Smart Electrical clearance value.
Specifications are based on the supplied product information for model RF620QNTVX1 and may change without notice. Food-freshness claims are based on Fisher & Paykel internal testing under stated test conditions. Smart features require compatible Wi-Fi and app connectivity. Confirm current stock condition, installation requirements, inclusions and warranty details before purchase.
